Modulating Valves
Accurately control the flow and pressure of your process with modulating valves from SPI. They come in a variety of options, including multi-taper, straight taper, or hand-operated.
Made of an entirely stainless-steel construction — with 316L wetted parts — these valves meet 3-A requirements. Valves are available in sizes 1", 2", 2.5", and 3" with five additional Micro Flow options for precise control of low flows.
Features and Options
Meets 3-A requirements
All stainless steel construction (316L wetted parts)
Precision machined plug and stem assures precise control and long life
Available with a valve positioner or hand operated
Viton® stem o-ring
Open yoke provides leak detection and visual stem position
No special tools needed for valve maintenance
Configurations
Straight taper
Multi-Taper
Manual
Micro Flow (plug sizes from 1/4” to 3/4”)
Modulating Valve Dimensions
SP160 Series
Dimensional Data| Size | NC/NO/Manual | A (in) | B (in) |
|---|---|---|---|
| 1 | NC | 23.88 | 2.50 |
| 1 | NO | 22.13 | 2.50 |
| 1 | Manual | 13.50 | 2.50 |
| 1.5 | NC | 23.88 | 2.75 |
| 1.5 | NO | 22.13 | 2.75 |
| 1.5 | Manual | 23.88 | 2.75 |
| 2 | NC | 23.88 | 3.50 |
| 2 | NO | 22.13 | 3.50 |
| 2 | Manual | 14.50 | 3.50 |
| 2.5 | NC | 25.25 | 3.50 |
| 2.5 | NO | 23.50 | 3.50 |
| 2.5 | Manual | 14.88 | 3.50 |
| 3 | NC | 25.94 | 3.75 |
| 3 | NO | 24.19 | 3.75 |
| 3 | Manual | 15.56 | 3.75 |
20VPR & 10VPD Valve Positioners
General Specifications:
Input Range: 3-15 PSI
Supply Pressure: 100 PSI Max.
Ambient Temp. Limits: -40ºF to 180ºF
Pneumatic Connections: All connections are 1/4” NPT
10VPD - Normally Open (NO)
3 PSI = Valve Open
15 PSI = Valve Closed
20VPR - Normally Closed (NC)
3 PSI = Valve Closed
15 PSI = Valve Open

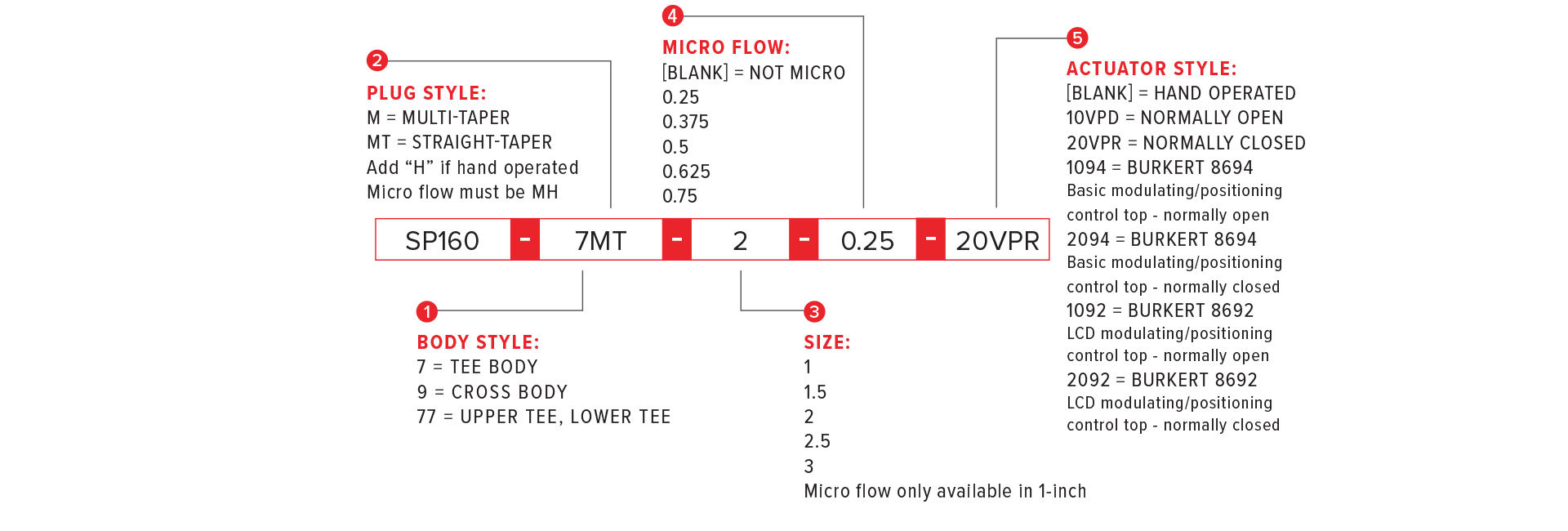

Part Number Configurator
For more housing options, dimensions, and curves see our modulating valve data sheet.
